Rule Change for 10th scale buggy wheel construction
May 14, 2015
ROAR is introducing a rules change with immediate effect that results in 2 different wheel configurations being available as options for manufacturers and competitors:
- the existing 2.2" nominal wheels
- the newer 2.4" or 61mm nominal wheels
The new rules do not include dimensions compatible with vintage style wheels as they are generally not used in ROAR sanctioned competition.

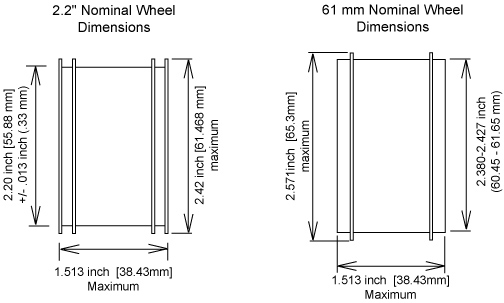

Dimensions for the traditional 2.2" wheel will be:
- Mounting Bead Diameter - 2.20 inch (55.88mm) +/-.013 inch (.30mm)
- Maximum Overall Diameter - 2.42 inch (61.468 mm)
- Width - 1.513 inch (38.43mm) maximum
Dimensions for the newer wheel style will be:
- Mounting Bead Diameter - 2.380 - 2.427 inch (60.45 - 61.65 mm)
- Maximum Overall Diameter - 2.571 inch (65.3 mm)
- Width - 1.513 inch (38.43mm) maximum
